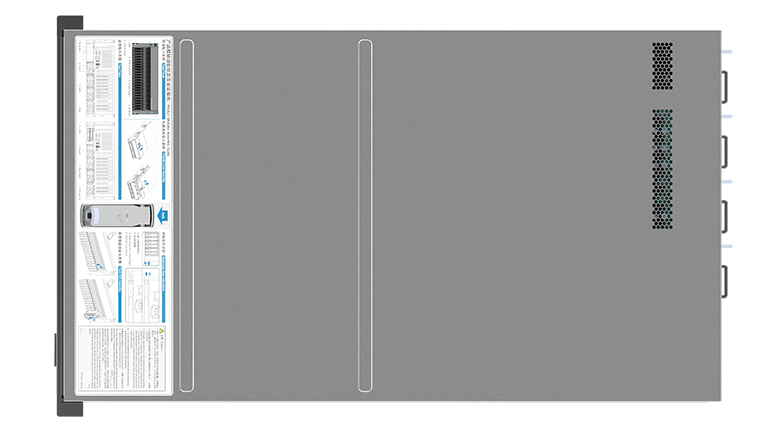

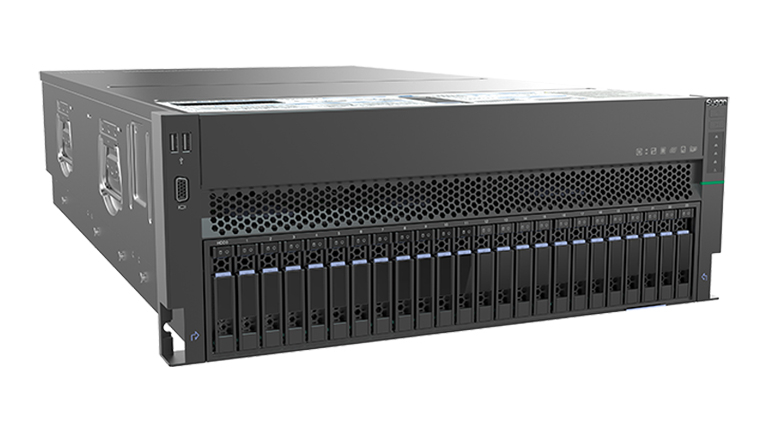

产品大图

I840-G30

Synopsis:

Tiankuo I840-G30 server is a new generation of high-end multi-channel self-developed server product, which is based on the market demand of finance, communications, government, energy and high-performance applications. With innovative and high availability design concepts, I840-G30 has been fully upgraded in server expansion, maintenance and manageability. The embedded full interconnected processor architecture and the six-channel memory architecture further improve the scalability of the system in large scale database applications. Component-level power consumption and performance management combined with higher-speed network links and higher stability achieve continuous online and highly accurate operation and maintenance of key businesses.

  • High Reliability

    Stable operations at 5-40℃ Over-20000-hour MTBF

  • High Availability

    For mainstream application environment VSAN、OpenStac, etc

  • High Scalability

    Maximum 6T storage 192 PCIe Lane full scale Multiple storage specifications : SATA、SAS、U.2、M.2 and SD card

Technical Specifications

Processor Supporting Intel® Xeon® Platinum/Gold extensible server High-speed UPI interconnect bus(maximum 10.4 GT/s， depending on the CPU model) Large-capacity of level-three caching(maximum 38.5 MB，depending on the CPU model)
Chip set Intel C620series chip set
Memory 48 memory slots Supporting DDR4 2666/2400/2133 ECCmemry (working frequency varies depending on CPU and memory configuration) Maximum 6TB Supporting RDIMM、LRDIM and NVDIMM
Internet Integrated Gigabit dual port RJ45 and 10 Gigabit double port optical fiber network interface
PCIe extensibility Supporting maximum 14个PCIe extended slot，including： 5个PCIe 3.0 X16slot 9个PCIe 3.0 X8slot
Storage controller Flexible configuration of hard disk controller SAS card，supporting RAID0/1/10 SAS RAIDcard，supporting RAID 0/1/5/6/50/60 Supporting Cache Supercapacitor protection, providing RAID-status immigration、RAID configuration memory, etc

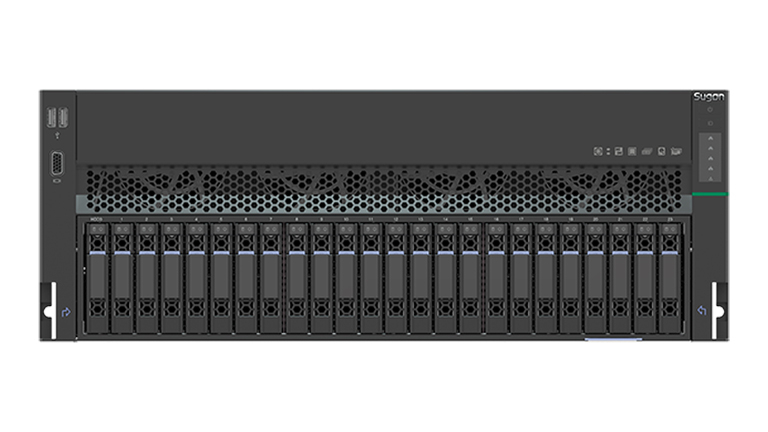

Hard drive solution Supporting front-plate hot swapping plug 24 SFF supporting SAS/SATA/U.2 hybrid hard drive Supporting back-plate hot swapping plug 2 SFF，supporting SAS/SATA hybrid hard drive Supporting 2 M.2 SSDs，built-in dual SD card

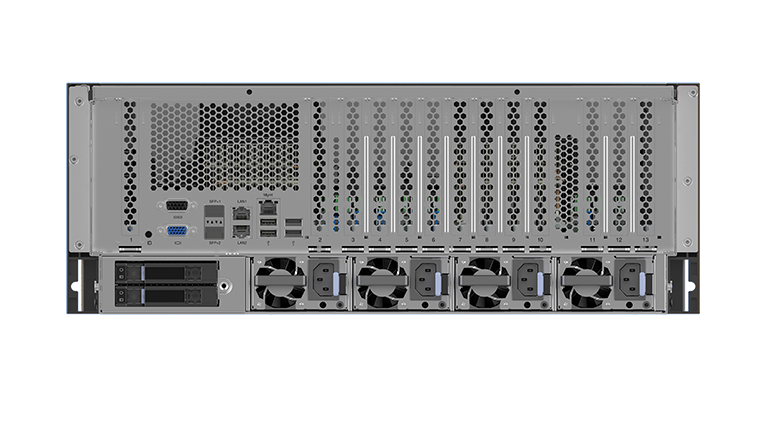

Other ports 1 RJ-45management interface in the back case； 4 USB 3.0 in the back case，optional 2 front-case USB ports； 1 VGA port，in the back case，optional front-case VGA； 1 serial port in the back case； 2 SDslots inside the case;
Power Optional 550W/800W/1200W High efficient platinum power supply Configurable N+N/N+M redundancy， compatible with 220V AC and 48V/240V/336V DC；
Heat Dissipation 4 groups of hot plug fan modules
Management function Integrated BMC chip，supporting advanced management functions such as IPMI2.0、SOL、KVM Over IP、virtual media，externally providing 1 1Gbps RJ45management port，supporting NCSI
Monitor screen Configurable front LCD monitor
CD-ROM Configurable DVD-RW
Graphics card Integrated display controller, maximum resolution 1920x1080
Supporting operating system Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.X 64bit RHEL 7.X 64bit SLES 12 SPx 64bit Ubuntu 15.10 64bit VMware ESXi 6.0 Operating system support is subject to change without notice
Supply voltage 200-240V/50Hz
Server case 4Urackmount server
Chassis size 175.5mm(height)x 447mm(width)(chassis ear excluded)x793mm(depth) 175.5mm(height)x 482mm(width)(chassis ear included)x793mm(depth)
Weight maximum50kg（lead rail excluded）
Operating temperature 5℃～40℃(41℉～104℉) at work -40℃～70℃(-40℉～158℉) for storage
Operation humidity Maximum relative humidity at work 90％RH（40℃） 35％～80％ RH at work 20％～93％ RH for transporting and storing
Vibration Frequency 5Hz～500Hz Acceleration ≤20m/s2 ,amplitude≤0.15mm
Dash Peak acceleration 150m/s2～300m/s2, length of time≤11ms
Collision Peak acceleration 100m/s2～150m/s2, less than 1000 times
