A320-G30

Synopsis:

A320-G30 is a high performance 1-way server developed by Sugon based on AMD latest Naples processor platform. Based on independently development, A320-G30 supports one AMD EPYC series processor, with the features like powerful performance, lower power consumption and great scalability. A320-G30 is a perfect replacement of low-end application requirements of 2-way servers and meets the requirements of SMB such as virtualization, industry analysis and cold storage.

  • Morsafe physical memory encryption

    Memory hardware encryption in SME-CPU architecture VM memory encryption in SVE-virtualization architecture

  • Extraordinary system design

    Stable operating in 5-40℃ PID fine variable speeding Precise component status and temperature monitoring

  • Efficient power consumption management

    Platinum high efficiency power module Server-level power consumption display and capping technology Component power consumption monitoring technology

Technical Specification

Processor Supports AMD EPYC series multi-core processors, high capacity L3 cache (16/32/48/64MB, depends on CPU model).
Memory 16 DIMM slots Supports DDR4 2666/2400/2133 ECC memory (running frequency depends on CPU and memory configuration) Up to 2TB memory Supports RDIMM, LRDIMM, NVDIMM
Network Interface Supports dual-port 1Gb RJ45, dual-port 10Gb RJ45, dual-port 10Gb SFP+, dual-port 25Gb/40Gb QSFP+, etc.
PCIe Expansion Up to 6 PCIe expansion slots (including 2 dedicated PCIe slots)
Storage Interface Onboard 24-port SATA controller SAS controller，supports RAID0/1/10 SAS RAID controller，supports RAID 0/1/5/6/50/60 Supports cache supercapacitor protection, provides RAID level migration, RAID configuration memory etc. functions

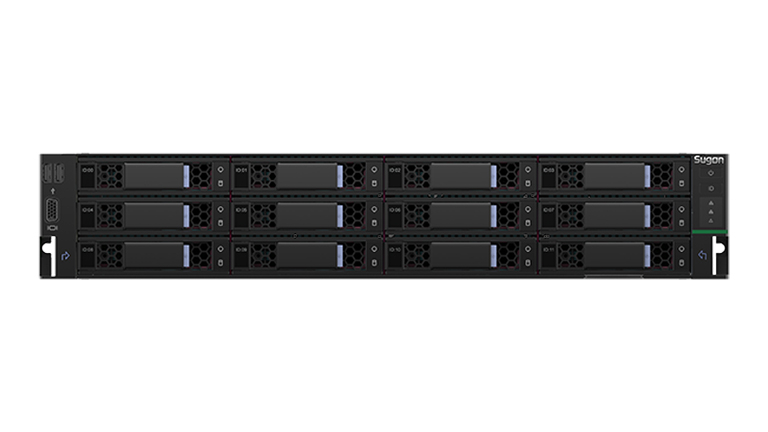

Disk Storage Solution Up to 12 front-end LFF/SFF, including up to 6 NVMe SSD, supports up to 2 back-end SFF Supports SAS/SATA mixed solution Supports 1 M.2 SSD and PCIe SSD 1 internal SD card

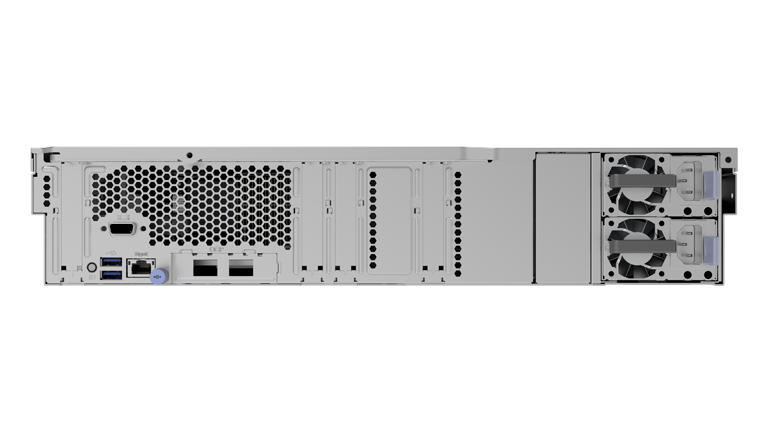

Other Ports 1*RJ-45 management interface, located in the rear of chassis 2*USB 3.0 interface located in the rear of chassis and 2*USB 2.0 interface in front of chassis 2*VGA interface, 1 located in the rear of chassis and 1 located in the front of chassis 1*SD card slots, located in the chassis
Power Optional 550W or 1200W CRPS Platinum Power, up to 1+1 redundancy；
Cooling 3 fan modules
Management Function Integrated BMC chip, supports IPMI2.0, SOL, KVM Over IP and virtual media advanced management function; provides 1*1Gb RJ45 management port, supports NCSI function.
CD-ROM Optional USB DVD-RW
Video Card Integrate display controller，512MB video memory, maximum resolution factor:1920*1080
Supported Operating Systems Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.9 64bits or higher SLES 11SP4 64bit or higher Ubuntu 16.04 64bit or higher VMware ESXi 6.5 In case of any change with supporting status of operating systems, it shall not be notified separately.
Certification CCC certification passed
Power Voltage 200-240V/50Hz

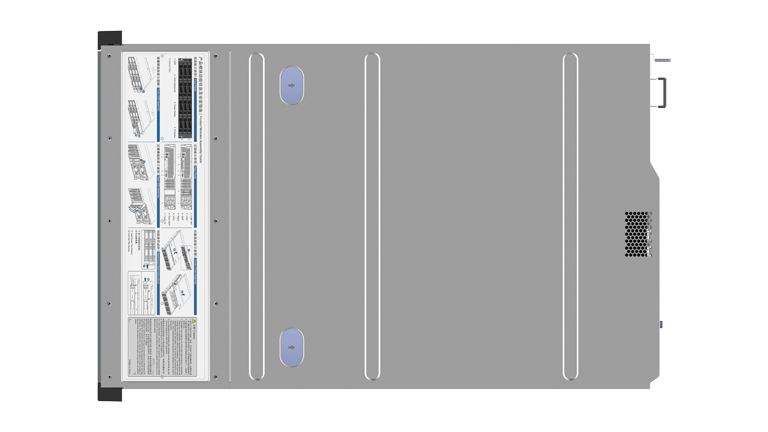

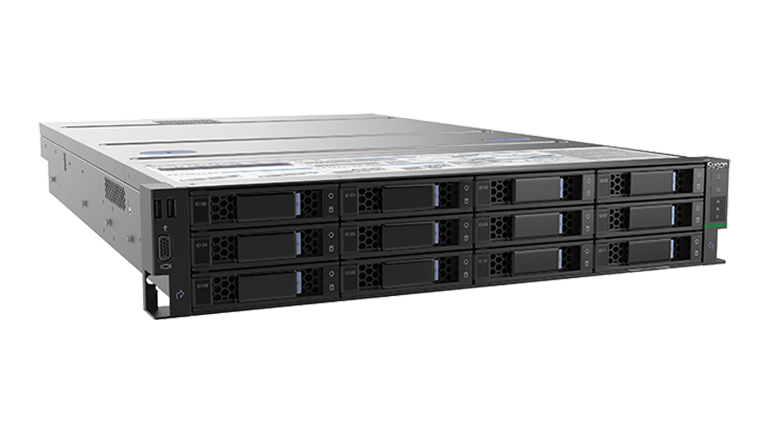

Chassis 2U rack-mount server chassis
Chassis Dimension 87.8mm(H)x 448mm(W)x730mm(D) 87.8mm(H)x480(including the hanger) mm(W) x 730mm(D)
Weight Maximum 35kg (excluding the rail)
Ambient Temperature Requirement Operating 5℃～40℃(41℉～104℉) Storage -40℃～70℃(-40℉～158℉)
Relative Humidity Requirement Operating: Maximum 90%RH (40°C) Operating: 35%~80% RH Transportation/Storage: 20%~93% RH
Vibration Frequency 5Hz~500Hz; acceleration ≤20m/s2; amplitude ≤0.15mm
Shock Peak acceleration 150m/s2~300m/s2; duration ≤11ms
Collision Peak acceleration 100m/s2~150m/s2; within 1000 times
