I620-G30-sugon

X86 Server

Adopt modular design, flexible configuration, with a mix of features to maximize performance, scale to meet future demands and adapt to virtually any workload with an optimum balance of compute and memory.

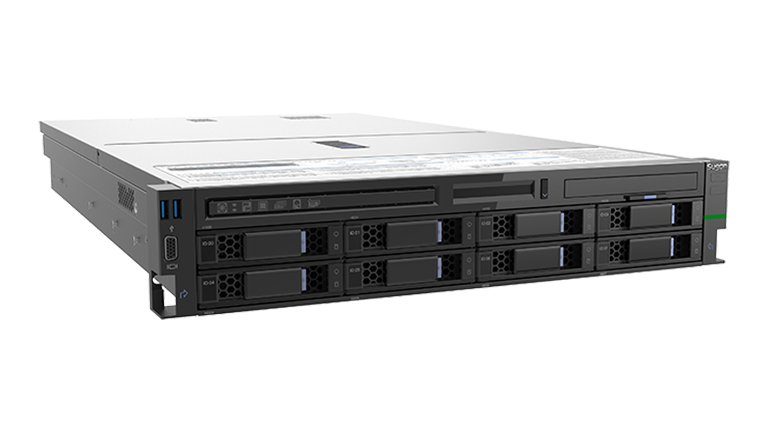

I620-G30

Synopsis:

Tiankuo I620-G30, developed by Sugon based on Intel ® xeon ® extensible processor platform, has extensive uses as a two-way server. I620-G30, which is fully self-developed, possesses superior computing performance and powerful IO expanding capacity, realizing high performance and high expansibility to the maximum extent, so it can meet the needs of all industries. I620-G30 server is very suitable for finance, securities, transportation, post, telecommunication, energy, Internet and other industries with data centers and remote business environment which is demanding on the server performance, extensibility and reliability.

Data Download

Powerful IO Expanding Capacity

Up to ten PCIe extensions 25+4 hot swap hard disk expansion
Multiple Options of Memory Interface

SATA, SAS, M.2, U.2 and Micro SD card
Excellent Heat Dissipation Design.

Stable operation between 5-40℃ PID refined stepless speed regulation Real-time and accurate temperature control of board card

Technical Specifications

Processor	Supporting Intel ® xeon ® extensible processors, high-speed UPI interconnect bus (10.4/9.6 GT/s, depending on the CPU Model) and three-level buffer of large capacity (15/20/25/30/35 MB, depending on the CPU Model)
Chipset	Intel C620 series of chipsets
Memory	Twenty-four memory slots Supporting DDR4 2666/2400/2133 ECC memory (the working frequency depending on CPU and memory configuration) Maximum extension to 3TB Supporting RDIMM、LRDIMM、NVDIMM and NVDIMM-N
Network	Onboard integrated giga dual-port RJ45 with multiple choices of network interfaces, such as10 gigabit dual-port RJ45, giga four-port RJ45, gigabit double-port optical fiber
PCIe Extension	Supporting maximum ten PCIe expansion slots (including two special PCIe slots)
Storage Controller	Integrated twelve SATA hard disk controllers which can be flexibly matched with SAS card, supporting RAID0/1/10, SAS RAID card supporting RAID 0/1/5/6/50/60 as well as Cache super-capacitor protection, and providing with functions such as RAID state transition and RAID configuration memory, etc.
Hard Disk Scheme	Four optional hard disk schemes corresponding to four models： 8 drive bays model: Supporting maximum eight LFF/SFF, including eight U.2 SSD 12 drive bays model: Supporting maximum twelve LFF/SFF, including eight U.2 SSD 24 drive bays model: Supporting maximum 24 SFF 25 drive bays model: Supporting maximum 25 SF All models support mixed insertion of hard disk SAS/SATA, optional two or four LFF/SFF as well as two M.2 SSD and PCIe SSD; Built-in dual Micro SD card.

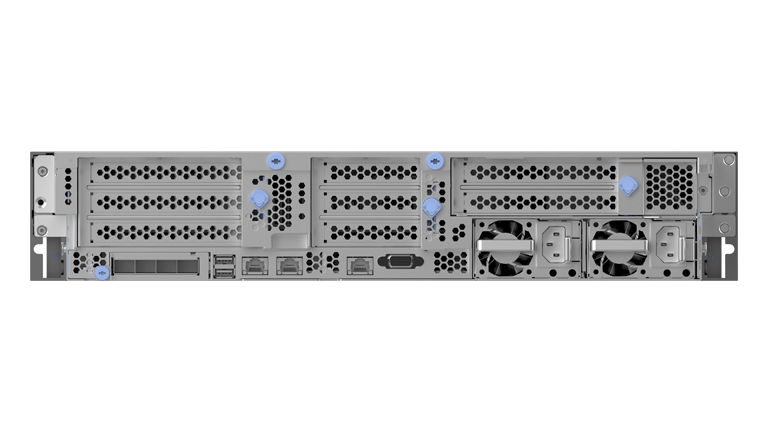

Other Ports	One RJ-45 management port is located at the rear of the chassis; Two USB 3.0 interfaces are at the rear of the chassis and two USB3.0 or USB2.0 options are available at the front of the chassis; One VGA interface is at the rear of the chassis and prepositioned VGA is optional; A serial port is optional, located at the rear of the chassis; Two Micro SD card slots are inside the chassis.
Power	550W high efficiency platinum power supply is for your option, which can be added to 1+1 redundancy;
Heat Dissipation	Four hot-swap fan modules, supporting 3+1 redundancy
Management Function	Integrated BMC chip, supporting advanced management functions such as IPMI2.0, SOL, KVM Over IP and virtual media, etc. A 1Gbps RJ45 management port is provided to support NCSI function.
Optical Disk Driver	Built-in SATA interface DVD-RW optical drive for 8 drive bays model; USB DVD-RW optical drive for 12/24 drive bays model
Monitoring Screen	Double key LCM monitoring screen for 8 drive bays model The LCM monitoring screen is not supported by 12/24 drive bays models
Graphics Card	Integrated display controller with maximum resolution of 1920x1080
Supported Operating Systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.X 64bit RHEL 7.X 64bit SLES 12 SPx 64bit Ubuntu 15.10 64bit VMware ESXi 6.0 Supported operating systems are subject to change without prior notice.
Certification	Certified by CCC, CB and CE, etc.（please refer to the list of the product certification for details）
Supply Voltage	200-240V/50Hz

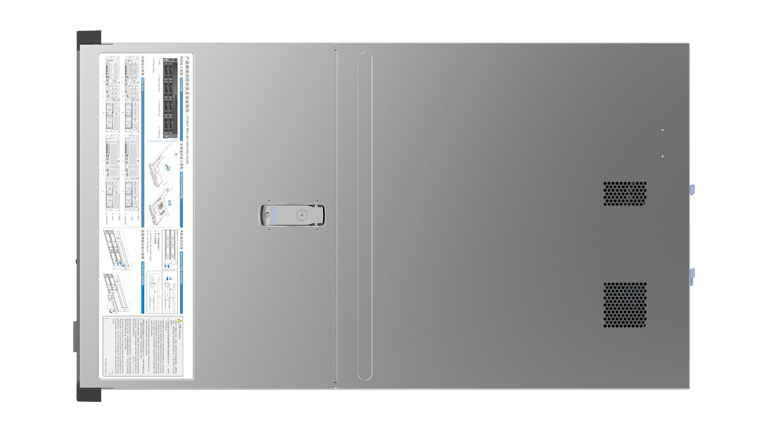

Chassis	2U rack-mounted server chassis
Chassis size	87.8mm(height)x 448mm(width)x794.4mm(depth) 87.8mm(height)x 482（including chassis ear）mm(width)x801.2（including hand screws）mm(depth)
Weight	Maximum 35 kg (not including the guide rail)
Operating Temperature	Working: 5℃～40℃ (41℉～104℉) Storage: -40℃～70℃ (-40℉～158℉)
Operating Humidity	Maximum relative humidity at work : 90％RH（40℃） Working: 35％～80％ RH Transiting and storage: 20％～93％ RH
Vibration	Frequency: 5Hz～500Hz; accelerated speed less than or equal to 20m/s2, amplitude less than or equal to 0.15mm
Shock	Peak acceleration is 150m/s2～300m/s2, and duration is less than or equal to 11ms
Collision	Peak acceleration is 100m/s2～150m/s2, within 1000 times
