I610-G30-sugon

X86 Server

Adopt modular design, flexible configuration, with a mix of features to maximize performance, scale to meet future demands and adapt to virtually any workload with an optimum balance of compute and memory.

I610-G30

Synopsis:

Tiankuo I610-G30, developed by Sugon based on Intel ® xeon ® extensible processor platform, has extensive uses as a two-way server. In 1U height space, I610-G30 perfectly integrates the performance, extensibility and density. It is not only applicable to data centers which are demanding on server’s performance such as online games but also to business environment which is demanding on server density and extensibility, such as internet, IDC and cloud computing, etc.

Data Download

Powerful IO Expanding Capacity

Up to five PCIe extensions 8 hot swap hard disk expansion
Multiple Options of Memory Interface

SATA, SAS, M.2, U.2 and Micro SD card
Excellent Heat Dissipation Design

Stable operation between 5-40℃ PID refined stepless speed regulation Real-time and accurate temperature control of board card

Technical Specifications

Processor	Supporting Intel ® xeon ® extensible processors, high-speed UPI interconnect bus (10.4/9.6 GT/s, depending on the CPU Model) and three-level buffer of large capacity (15/20/25/30/35 MB, depending on the CPU Model)
Chipset	Intel C620 series of chipsets
Memory	Twenty-four memory slots Supporting DDR4 2666/2400/2133 ECC memory (the working frequency depending on CPU and memory configuration) Maximum extension to 3TB Supporting RDIMM、LRDIMM、NVDIMM and NVDIMM-N
Network	Onboard integrated gigabit dual-port RJ45 with multiple choices of network interfaces, such as 10 gigabit dual-port RJ45, giga four-port RJ45, gigabit double-port optical fiber
PCIe Extension	Supporting maximum five PCIe expansion slots (including two special PCIe slots)
Storage Controller	Integrated twelve SATA hard disk controllers which can be flexibly matched with SAS card, supporting RAID0/1/10 and SAS RAID card, supporting RAID 0/1/5/6/50/60 as well as Cache super-capacitor protection, and providing with functions such as RAID state transition and RAID configuration memory, etc.
Hard Disk Scheme	Two optional hard disk schemes： 4 drive bays model: Supporting maximum four LFF/SFF, including four U.2 SSD 8 drive bays model: Supporting maximum eight LFF/SFF, including four U.2 SSD All models support mixed insertion of hard disk SAS/SATA , as well as two M.2 SSD, and PCIe SSD; Built-in dual Micro SD card

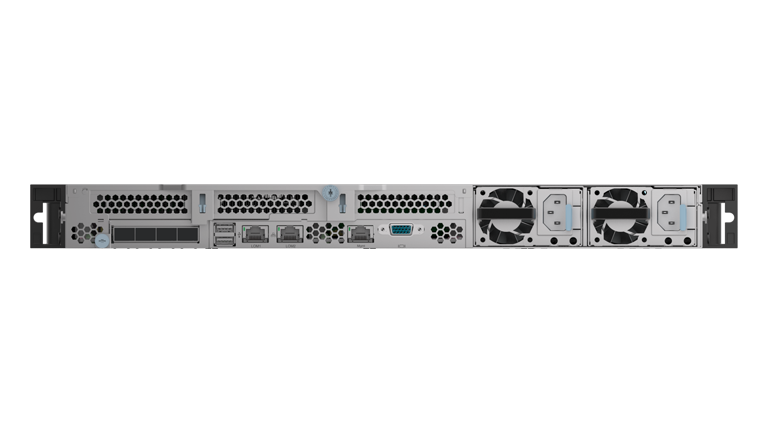

Other Ports	One RJ-45 management port is located at the rear of the chassis; Four USB 3.0 interfaces, two of which are at the rear of the chassis and the other two are at the front of the chassis; One VGA interface is at the rear of the chassis and prepositioned VGA is optional; A serial port is optional, located at the rear of the chassis; Two SD card slots are inside the chassis.
Power	550W high efficiency platinum power supply is for your option, which can be added to 1+1 redundancy;
Heat Dissipation	Seven hot-swap fan modules
Management Function	Integrated BMC chip, supporting advanced management functions such as IPMI2.0, SOL, KVM Over IP and virtual media, etc. A 1Gbps RJ45 management port is provided to support NCSI function
Optical Disk Driver	Optional built-in SATA interface DVD-RW optical drive
Graphics Card	Integrated display controller with maximum resolution of 1920x1080
Supported Operating Systems	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.X 64bit RHEL 7.X 64bit SLES 12 SPx 64bit Ubuntu 15.10 64bit VMware ESXi 6.0 Supported operating systems are subject to change without prior notice.
Certification	Certified by CCC, CB and CE, etc.（please refer to the list of the product certification for details）
Supply Voltage	200-240V/50Hz
Chassis	1U rack-mounted server chassis
Chassis Size	43.5mm(height)x 432mm(width)x803.5mm(depth) 43.5mm(height)x 482（including chassis ears）mm(width)x814(including hand screws）mm(depth)
Weight	Maximum 27 kg (not including the guide rail)
Operating Temperature	Working: 5℃～40℃ (41℉～104℉) Storage: -40℃～70℃ (-40℉～158℉)
Operating Humidity	Maximum relative humidity at work : 90％RH（40℃） Working: 35％～80％ RH Transiting and storage: 20％～93％ RH
Vibration	Frequency: 5Hz～500Hz; accelerated speed less than or equal to 20m/s2, amplitude less than or equal to 0.15mm
Shock	Peak acceleration is 150m/s2～300m/s2, and duration is less than or equal to 11ms
Collision	Peak acceleration is 100m/s2～150m/s2, within 1000 times
